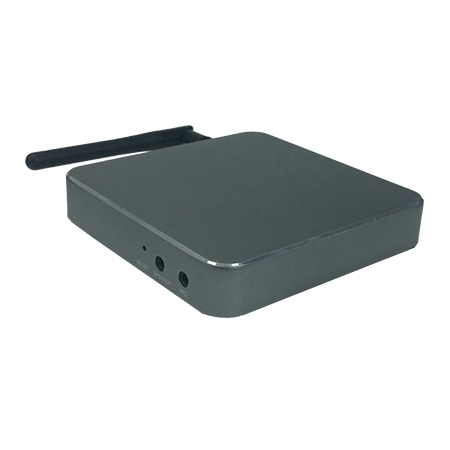

X10-mini for OnSign TV (X10M-216STV1)

Commercial grade digital signage media player prepared for OnSign TV. Comes preinstalled with OnSign TV and OnSign TV SPM for easy remote view, control, and reboot. System comes with 2GB DDR3, 16GB eMMC, and Android 6.0. Optional 3G/4G-LTE

Featured Highlights

• Small - ideal for Digital Signage (as a media player)
• Access Control (to remote control other devices over the Internet)
• Video Conference
• NAS - storage over LAN (by attaching USB drives)
• Surveillance & Monitoring (as a viewer client)
• Notification Device (over IP)
• Voice over IP
• Network Appliance (as a WiFi hotspot)
• Personal Computer (to check e-mail & browse the Web)
• Thin Client Terminal (as a business computer)

Accessory

Availability: In stock

Qty:

Specifications
Reviews
Contact Us

Product specifications

Processor	• ARM A53 Cortex 64-bit Processor
Graphics	• PowerVR G6110
Memory	• 2GB DDR3
Storage	• 16GB eMMC
LAN	• 100Mbit Ethernet(DJ45) • 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz) • Bluetooth 4.1 • 3G/4G SIM Socket(pair with miniPCIe slot)
OS Support	• Android 6.0
Expansion Slots	• miniPCIe full size(for 3G/4G modem)
Video Output	• HDMI® 2.0, up to 4K @ 60fps
Audio Output	• HDMI®, 3.5mm Mic-in, speaker out jacks
I/O Ports	• RJ-45 Ethernet jack (10/100Mbps); supports hotspot sharing via WiFi • TF(MicroSD) card reader (upto 128G) • USB 2.0 port x 2 • IR receiver (remote included)
Power Supply	• DC 5V, 2A (Optional 3A) adapter included (CE, FCC, CCC certified)
Supported Video Formats	• DAT/MPEG/MPE/MPG/TS/TP/VOB/ISO/AVI/MP4/MOV/3GP/FLV/MKV/M2TS/MTS/ M4V/WMV/ASF/RM/RMVB
Supported Audio Formats	• MP2/MP3/WMA/WAV/OGG/OGA/FLAC/ALAV/APE/AAC
Dimension	• 4.17 x 4.17 x 0.75in (H)

Your name *

Your email *

Inquiry *

Product specifications

Processor	• ARM A53 Cortex 64-bit Processor
Graphics	• PowerVR G6110
Memory	• 2GB DDR3
Storage	• 16GB eMMC
LAN	• 100Mbit Ethernet(DJ45) • 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz) • Bluetooth 4.1 • 3G/4G SIM Socket(pair with miniPCIe slot)
OS Support	• Android 6.0
Expansion Slots	• miniPCIe full size(for 3G/4G modem)
Video Output	• HDMI® 2.0, up to 4K @ 60fps
Audio Output	• HDMI®, 3.5mm Mic-in, speaker out jacks
I/O Ports	• RJ-45 Ethernet jack (10/100Mbps); supports hotspot sharing via WiFi • TF(MicroSD) card reader (upto 128G) • USB 2.0 port x 2 • IR receiver (remote included)
Power Supply	• DC 5V, 2A (Optional 3A) adapter included (CE, FCC, CCC certified)
Supported Video Formats	• DAT/MPEG/MPE/MPG/TS/TP/VOB/ISO/AVI/MP4/MOV/3GP/FLV/MKV/M2TS/MTS/ M4V/WMV/ASF/RM/RMVB
Supported Audio Formats	• MP2/MP3/WMA/WAV/OGG/OGA/FLAC/ALAV/APE/AAC
Dimension	• 4.17 x 4.17 x 0.75in (H)
