| Processor | • ARM® Cortex®-A55 4Core up to 1.80GHz |
| Graphics | • Mali™-G52-2EE Graphics |
| Memory | • 4GB DDR4 |
| Storage | • 32GB eMMC 5.1 Storage |
| Network | • 1 x Realtek® RTL8211F-CG Gigabit (10/100/1000 Mb/s) LAN
• 802.11ax WiFi6+Bluetooth 5.0 Module
• Wake on LAN |
| OS Support | • Android 11 |
| Video Output | • HDMI 2.0, up to 4K @ 60fps |
| Audio Output | • Rockchip RK809 HD Audio
• Support for S/PDIF
• 2 x 3.5mm Analog Stereo Audio jacks |
| I/O Ports | • 1 x HDMI 2.0 port
• 1 x LAN port
• 1 x S/PDIF port
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector
• 2 x USB 2.0 ports (Side)
• 1 x USB 3.0 port (Side)
• 1 x MicroUSB port (Side)
• 1 x TF/MicroSD reader (Side) |
| Power Supply | • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W |
| Supported Video Formats | • DAT/MPEG/MPE/MPG/TS/TP/VOB/ISO/AVI/MP4/MOV/3GP/FLV/MKV/M2TS/MTS/ M4V/WMV/ASF/RM/RMVB |
| Supported Audio Formats | • MP2/MP3/WMA/WAV/OGG/OGA/FLAC/ALAV/APE/AAC |

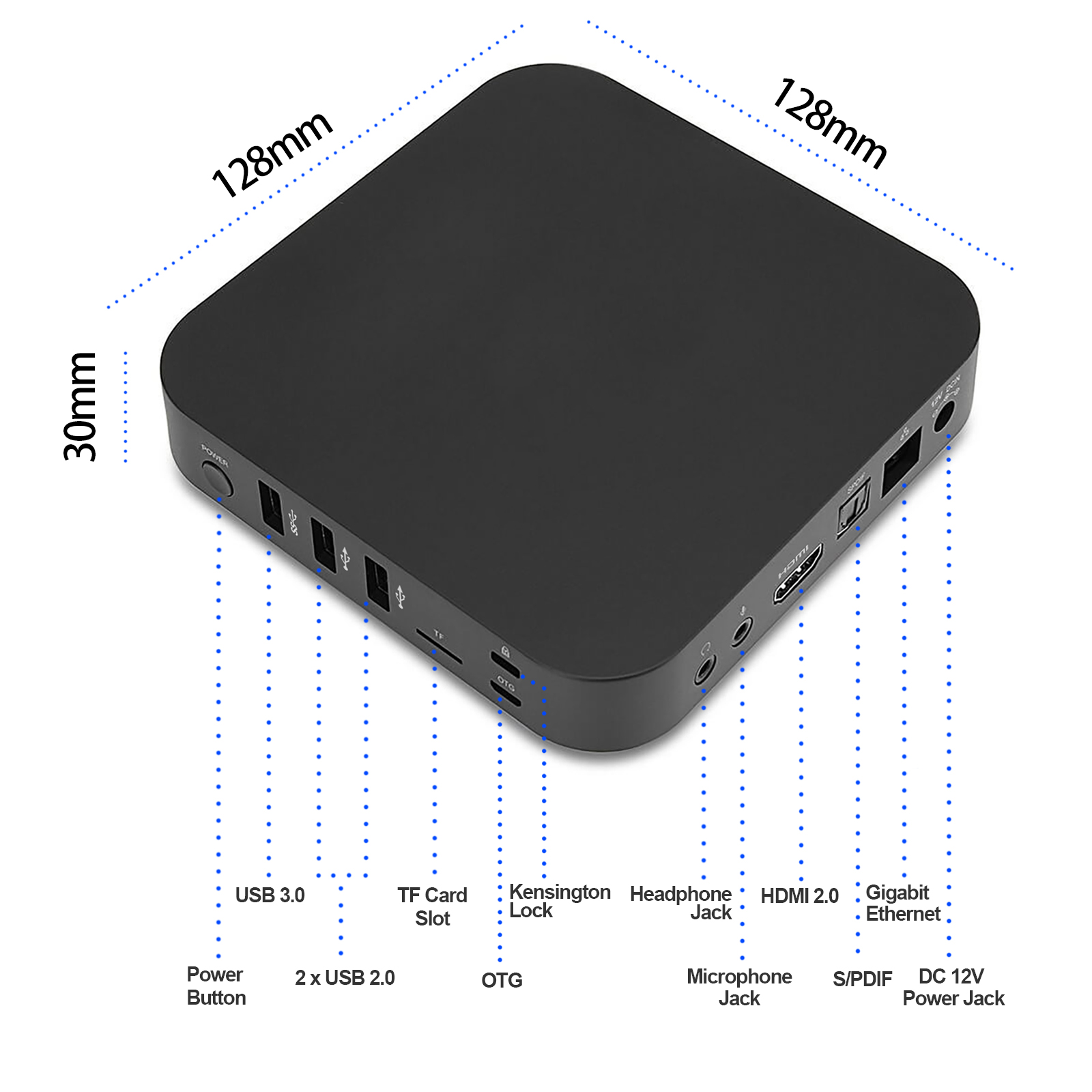

| Dimension | • 5.00 x 5.00 x 1.20in (H) |
