| Processor | •ARM® Cortex®-A55 4Core up to 1.80GHz |
| Chipset | •Rockchip RK3568 (SOC) |
| Graphics | • ARM® Mali™-G52 EE 4Core Graphics Processor
• 1 x HDMI® 2.0, 4K 60Hz Graphics port
• 1 x LVDS/eDP header (for SBC / Panel PC / All-in-One) |
| Memory | • 2GB/4GB/8GB DDR4 (built-in, non-changeable) |
| Network | • 1 x Gigabit (10/100/1000 Mb/s) LAN (optional 2nd LAN with Aluminum chassis by model X55-LX2)
• WIFI-5 802.11 a/b/g/n/ac (Optional WIFI-6 802.11 a/b/g/n/ac/ax )
• Bluetooth 4.2 (Optional BT 5.4)
• 1 x M.2 3042/3052 (for 5G/4G-LTE Module pairing with SIM Slot)
• Optional Internal GPS with external Antenna connector
• Wake on LAN, PXE boot (Diskless) supported |
| Expansion Slots | • 1 x M.2 3042 (for 5G/4G-LTE Module pairing with SIM Slot) or GPS Module
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD) |
| Storage | • 16GB/32GB/64GB eMMC 5.1
• 1 x M.2-2280 for NVMe SSD Slot
• Optional 1 x SD slot |
| Audio | • 2 x 3.5mm Audio Out/Mic In jacks
• 1 x Optical S/PDIF Digital Audio Out |
| Back I/O | • 2 x USB 2.0 port
• 1 x LAN ports (Optional 2 LAN with 1 USB see X55-LX2)
• 1 x HDMI® 2.0 port
• 1 x DC12V-In 2.5mm Power Connector
• 1 x Firmware Control Hidden Switch |
| Internal I/O | • 2 x USB 2.0 headers
• 1 x Battery Connector for Real Time Clock
• 1 x M.2 -2280 NVMe Slot
• 1 x M.2-3420/3520 for 4G/5G-LTE with sim slot
• 1 x 8in/8out GPIO (Optional)
• 4 x UART Serial Console Header (Optional) |

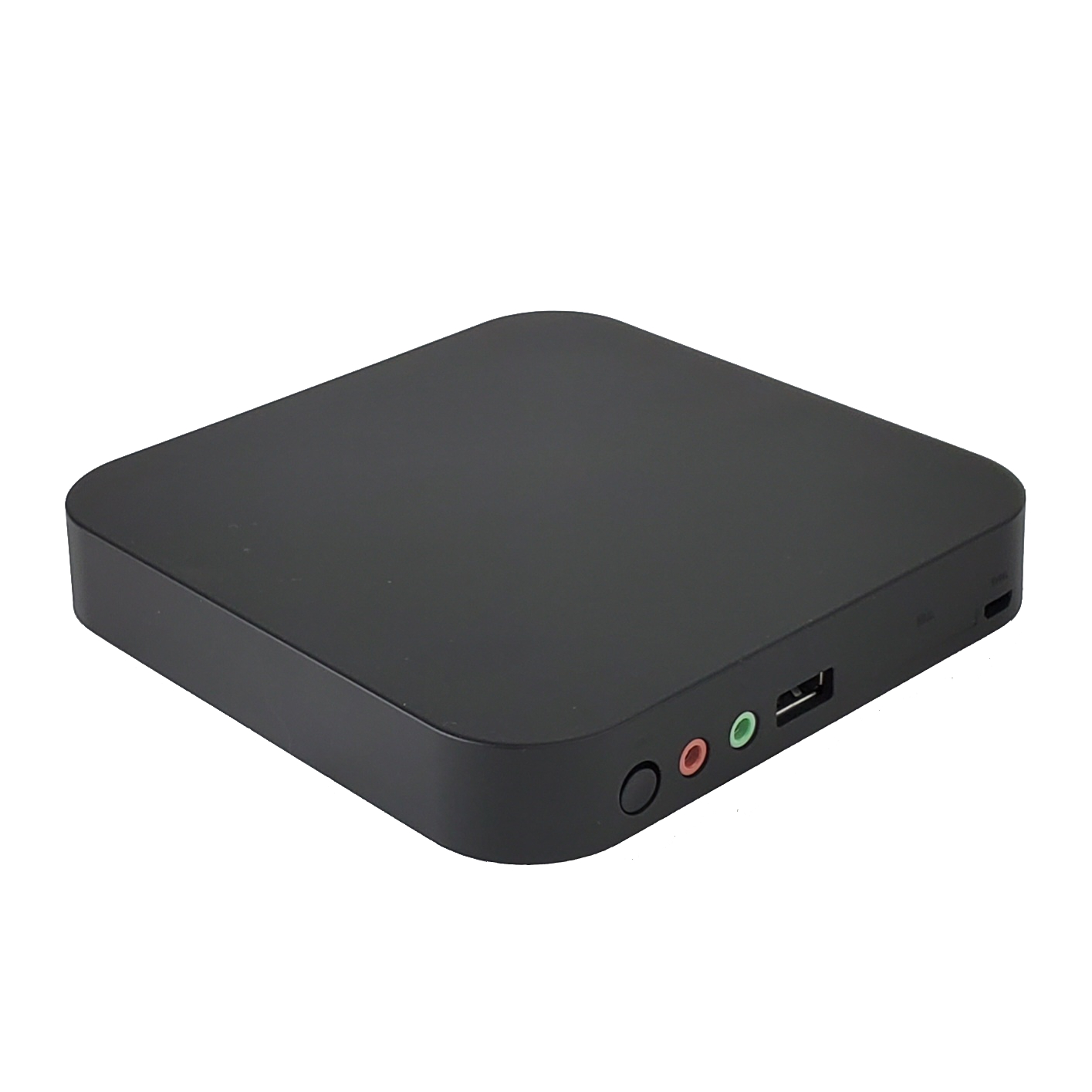

| I/O Ports | • 1 x USB 2.0 ports (Side)
• 1 x USB 3.0 OTG port (Side)
• Optional 1 x SD slot (Side)
• 2 x Audio/Mic jacks (Side)
• 1 x IR Receiver (Front)
• 1 x WiFi+BT Antenna (Side)
• 1 x Optional 4G/5G Cellular Antenna (Side)
• 1 x Optional On/Off Power Switch (Side) |
| Power Supply | • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W |
| OS and Storage Manager | • Android 12, Linux. |
