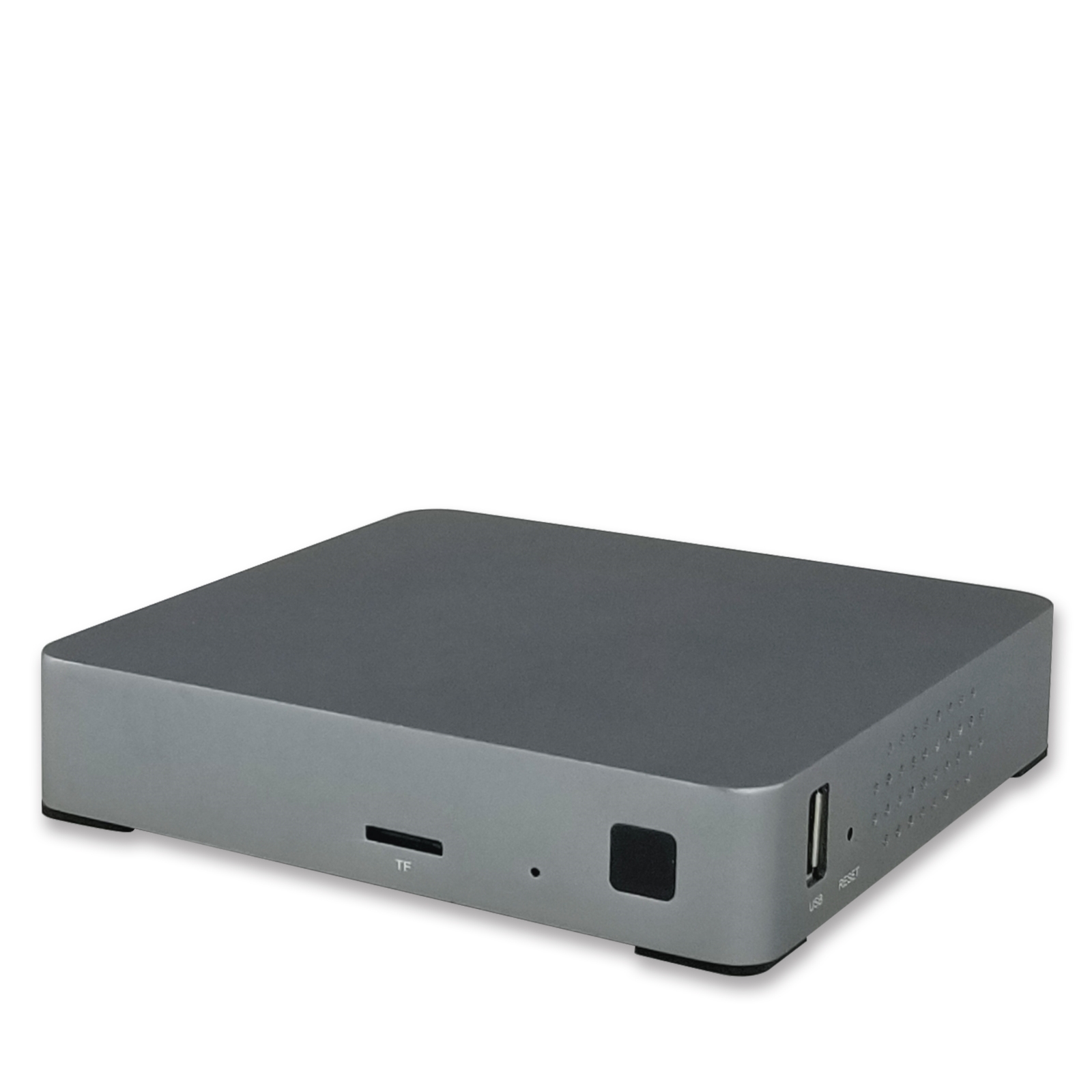

X9-IN for Novisign(X9IN-216NOV1)

1 review(s) | Add your review

Call (888-765-9686 ) for pricing

A Specially Designed Commercial Grade Digital Signage Media Player for NoviSign, ARM® Cortex-A17 4Core up to 2.00GHz ,4.17” x 4.17” x .95” with 2GB DDR3, 16GB eMMC, Android 5.1, Optional 3G/4G-LTE, and Remote. For more info, contact Madison@minix.us

Accessory

IR remote for Android Player [+$7.50]
MiniPCIe 3G SIM module [+$49.00]
Sierra MiniPCIe Modem MC7354 4G LTE [+$149.00]

VESA/WALL

Specifications
Overview
Reviews
Contact Us

Product specifications

Processor	• ARM® Cortex-A17 4Core up to 2.00GHz
Chipset	• RK3288
Graphics	• Quad-Core Mali T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1 • Support 2 Graphics ports • 1 x HDMI 2.0 4K 60Hz Graphics Port • 1 x HDMI, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2
Memory	• 2G DDR3
Network	• 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz) • Bluetooth 4.0
Expansion Slots	• 1 x SIM socket for 3G/4G-LTE option
Storage	• 16-64GB eMMC Flash internal Storage • 1 x TF (microSD) Slot supports 128G+ microSD/TF Card
Audio	• 5.1 HD audio subsystem via HDMI 1.4 interface • 1 x 3.5mm analog stereo audio jacks
Back I/O	• 2 x USB 2.0 Ports • 1 x HDMI 2.0 port • 1 x HDMI port • 1 x 3.5mm audio jacks • 1 x LAN Port • 1 x DC IN Jack
Internal I/O	1 x LVDS (Header)
Power Supply	• Power: DC12V-2A Supported, Standard with DC12V 2A (24W) Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as an Option • Energy Star Compliance, Idle mode at <1W
OS Support	• Android 5.1
Chassis	• NUC Tiny Chassis • Dimensions: 0.95(H) x 4.1(W) x 4.1(D) inch, Weight: 0.7 lb (net) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets
Environment	• Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

•	ARM Cortex-A17 Processor
•	RK3288 Chipset
•	Quad-Core Mali T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, HDMI 2.0+HDMI
•	2GB DDR3 Memory
•	11ac WiFi+BT 4.0
•	3 USB 2.0
•	5.1 HDMI Audio Sound
•	Power Supply: DC12V-2A input
•	OS Support: Android 5.1
•	Applications: Set Top Box, Digital Signage, POS/Kiosk, Media Player/IPTV, etc.

Existing reviews

Amazing!

I use this with live tv PIP with NoviSign software for business lobbies. Couldn't ask for a better product.

From: Ric | Date: 9/16/2022 8:06 AM

Was this review helpful? Yes No (0/0)

Write your own review

Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
Excellent

Your name *

Your email *

Inquiry *

•	ARM Cortex-A17 Processor
•	RK3288 Chipset
•	Quad-Core Mali T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, HDMI 2.0+HDMI
•	2GB DDR3 Memory
•	11ac WiFi+BT 4.0
•	3 USB 2.0
•	5.1 HDMI Audio Sound
•	Power Supply: DC12V-2A input
•	OS Support: Android 5.1
•	Applications: Set Top Box, Digital Signage, POS/Kiosk, Media Player/IPTV, etc.

Product specifications

Processor	• ARM® Cortex-A17 4Core up to 2.00GHz
Chipset	• RK3288
Graphics	• Quad-Core Mali T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1 • Support 2 Graphics ports • 1 x HDMI 2.0 4K 60Hz Graphics Port • 1 x HDMI, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2
Memory	• 2G DDR3
Network	• 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz) • Bluetooth 4.0
Expansion Slots	• 1 x SIM socket for 3G/4G-LTE option
Storage	• 16-64GB eMMC Flash internal Storage • 1 x TF (microSD) Slot supports 128G+ microSD/TF Card
Audio	• 5.1 HD audio subsystem via HDMI 1.4 interface • 1 x 3.5mm analog stereo audio jacks
Back I/O	• 2 x USB 2.0 Ports • 1 x HDMI 2.0 port • 1 x HDMI port • 1 x 3.5mm audio jacks • 1 x LAN Port • 1 x DC IN Jack
Internal I/O	1 x LVDS (Header)
Power Supply	• Power: DC12V-2A Supported, Standard with DC12V 2A (24W) Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as an Option • Energy Star Compliance, Idle mode at <1W
OS Support	• Android 5.1
Chassis	• NUC Tiny Chassis • Dimensions: 0.95(H) x 4.1(W) x 4.1(D) inch, Weight: 0.7 lb (net) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets
Environment	• Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
